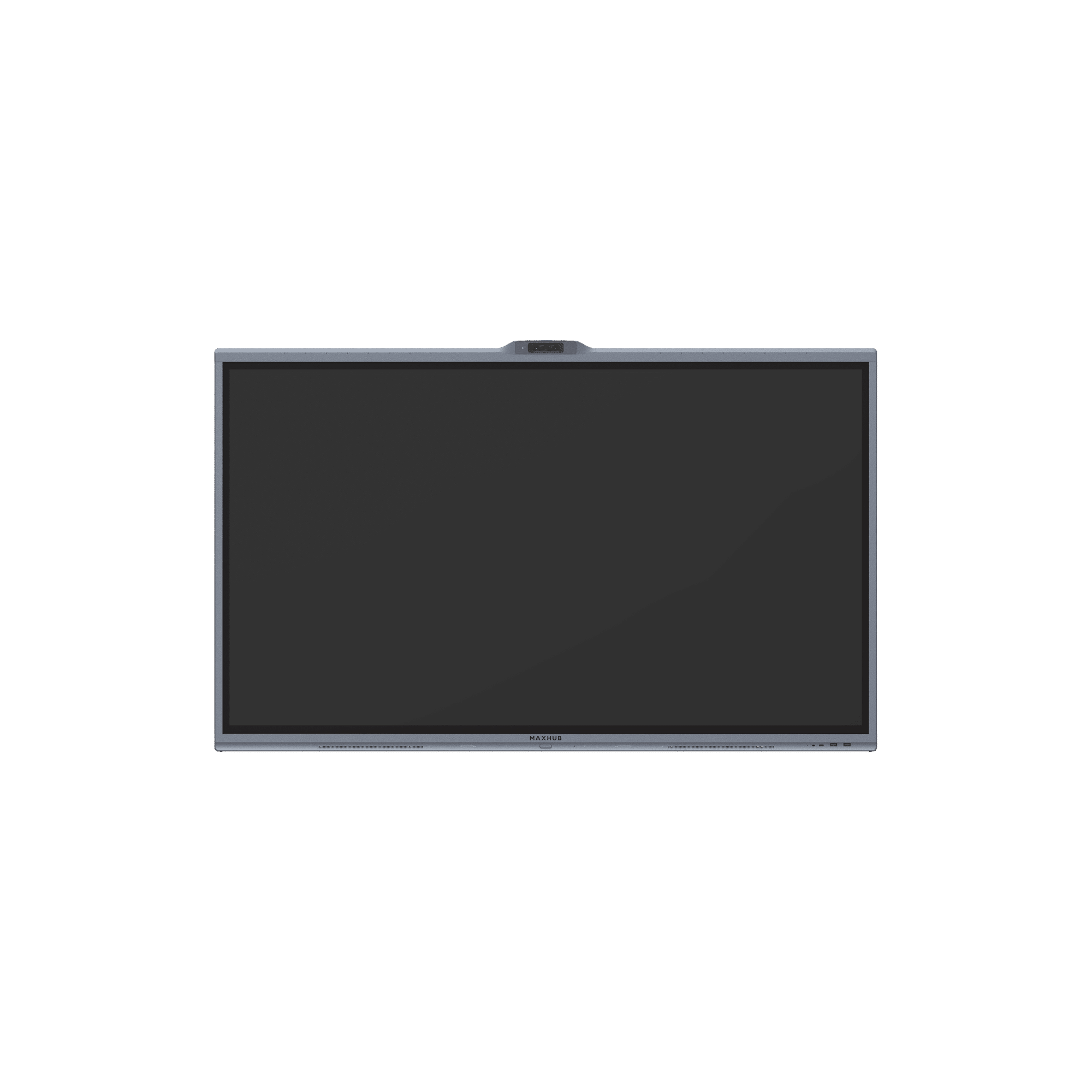

Display

• 55 inch 4K UHD (3840 × 2160), 16:9
• ADS-paneel met DLED-backlight
• Helderheid: 350 nits, contrast 1200:1
• 90% NTSC kleurgamma, ∆E ≤ 1.5, 1.07B kleuren (10-bit)
• Non-glare (25% haze), 9H tempered glass van 3mm
• Kijkhoek 178°/178°, responstijd 8 ms
• Levensduur >50.000 uur

Touch

• Intelligent Touchscreen Technology (infrarood)
• 50 touchpoints, nauwkeurigheid ±0.5 mm
• Responstijd ≤2.5 ms
• Windows Ink, palm rejection, handwriting recognition

Camera (Trident Lens)

• 3× 50 MP camera’s (1 wide + 2 telephoto)
• 5x hybrid zoom
• Ultra-wide FOV 99° (wide) / 68° combined (telephoto)
• Auto framing, speaker tracking, multi-speaker tracking
• Privacy shutter aanwezig

Audio

• 16-mic array, pickup tot 15 meter, 180° pickup-hoek
• AEC, ANC, AGC, intelligent audio fence, AI spatial sound
• 2.1 speakersysteem: 2× 10W + 20W subwoofer

Connectiviteit

• HDMI in ×2 (4K@60Hz, HDCP 2.2, CEC), HDMI out ×1 (4K@30Hz)

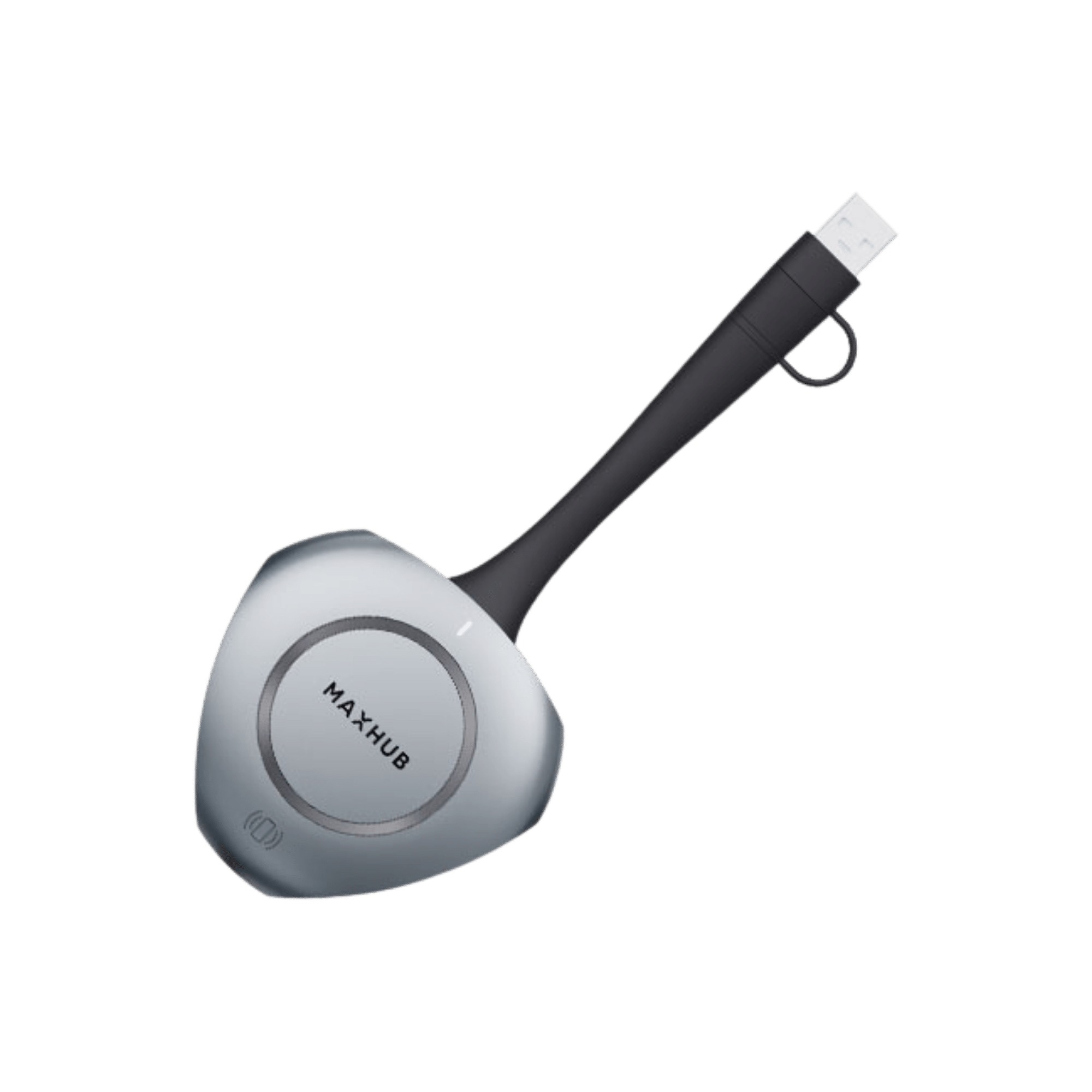

• USB-C in (DP 1.2, BYOD, dongle pairing)
• USB 2.0 ×4, USB 3.0 ×5
• RJ45 (10/100/1000 Mbps), RS232
• Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Screen share: MAXHUB Share, Miracast, AirPlay, Chromecast

PC Module (optioneel)

• MT71E / MT71F pluggable module
• 12e gen Intel, Windows 10 IoT / Windows 11 Pro

Fysiek & voeding

• Afmetingen: 1269.5 × 792.9 × 102.7 mm
• Gewicht: 26.85 kg
• VESA 400 × 200 mm
• 100-240V, 50/60Hz, 4.0A
• Verbruik: 101W (typ.) / 320W (max), standby ≤0.5W

Overig

• OS: MAXHUB OS 7.0 powered by Windows
• Control: RS232 / IP, integratie met Crestron, Extron, Q-sys
• Microsoft Intune support
• 3 jaar garantie, Energy Star gecertificeerd
